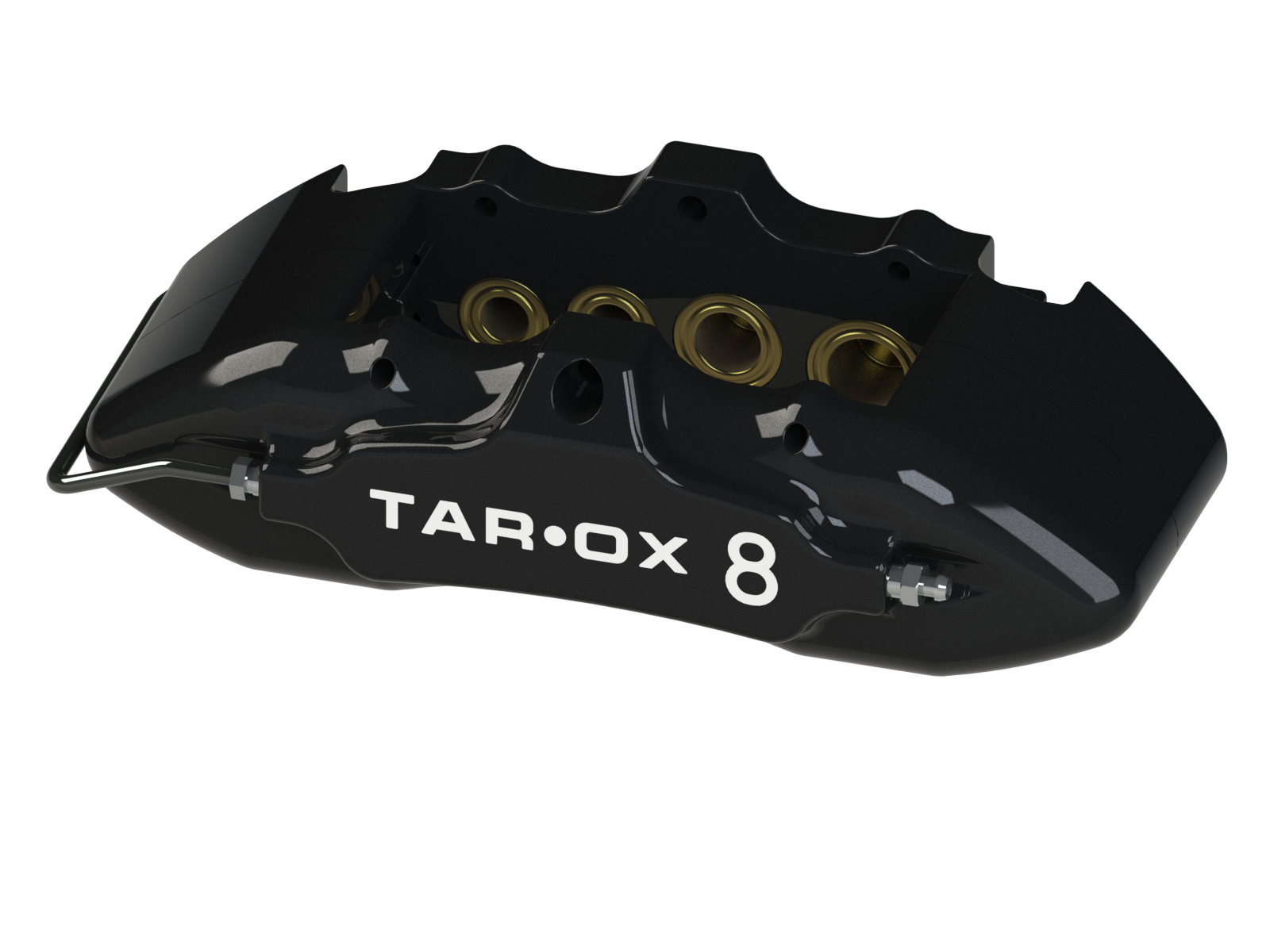

B360-8
B360-8
- September 22, 2016
0
Summary
- For racing and street use
- For rotors 60mm/2.4″ deep
- Made from solid alloy billet
- Multi piston seals allow for low maintenance
- Hard satin black anodized
Recommended for
- GT cars
- Touring cars
- Rally cars
- Street heavy duty brake conversion kits
Technical data
| Piston number | 8 | |
| Rotor Ø (min-max) | 350-370mm (13.8-14.5″) | |
| Rotor thickness (min-max) | 10-36mm | |
| Rotor Depth | 60mm | |
| Weight | 3.6kg (7lb 15oz) | |
| Mounting Type | Radial | |
| Lug offset (min-max) | – | |
| Lug PCD | – | |
| Anti knock-back Pistons | Optional | |
| Mounting Centers | 180mm | |
| Notes | ||
| Piston Layout (Diameter in mm) | 26 / 26 / 31 / 34 | |
| Total area (both sides) mm² | 514 | |
| Pad Code | SP0239 | |
| Pad Area cm² | 80 | |
| Pad Choice | .114/.115/.116/.118 | |
| Pad Thickness | 17mm | |
| Pad Depth | 60mm |
